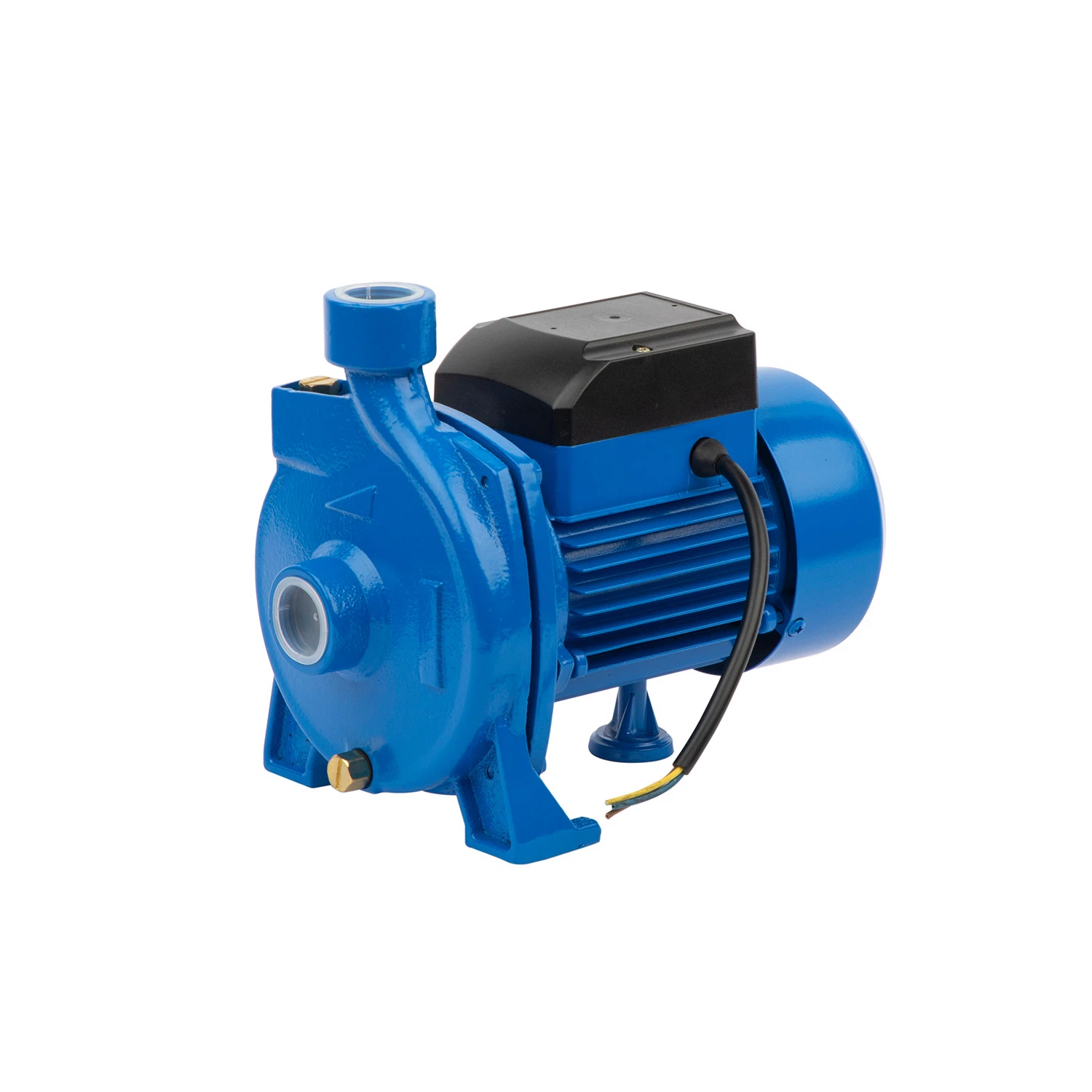

APPLICATION
CPM series water pumo recommended for pumping clean water without abrasive particles and liquids that are non-corrosive
For domestic use and sprinkling irrigation for garden as well as supplying water to hotel, villa and high building
Must be installed in enclosed place or keep it away from inclement weather
Transport mediumPH6.5-8.5
OPERATING LIMITS
Max.Suction9m
Max.medium temperature+40°C
Max.ambient temperature+40°C
Max.pressure6 bar
MOTOR INFORMATION
Two-pole induction motor
Single phasethree phase,5060Hz(on demand)
Thermal protector for single phase
Insulation classB
Protection classIP44
MATERIAL
Pump bodyCasiron
Motor housingAluminum
ImpellerBrass
Motor wirecopper
Mechanical sealGraphite&Ceramic
Shaft45#steelstainless steel

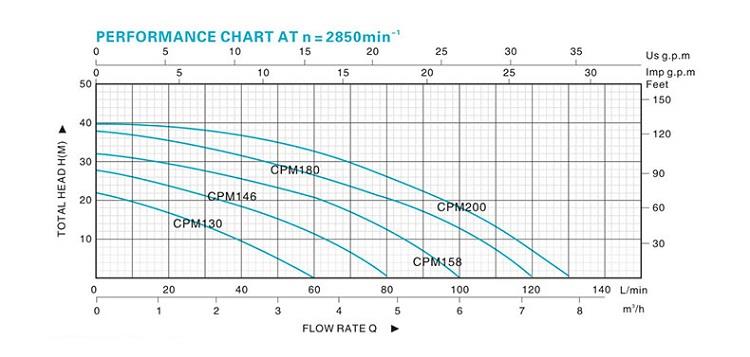

Model | Power | Q.Max (L/min) | H.Max (m) | S.Max (m) | Inlet/Outlet (inch) | 20GP(pcs） | G.W. (kg) | Packing dimension (mm) | |
| KW | HP | ||||||||
| CPM130 | 0.37 | 0.5 | 60 | 22 | 9 | 1"×1" | 2600 | 7.5 | 280×175×225 |
| CPM146 | 0.55 | 0.75 | 80 | 28 | 9 | 1"×1" | 1500 | 11 | 347×202×265 |
| CPM158 | 0.75 | 1 | 100 | 32 | 9 | 1"×1" | 1500 | 11.6 | 347×202×265 |
| CPM180 | 1.1 | 1.5 | 120 | 38 | 9 | 1.25"×1" | 850 | 20 | 403×260×325 |
| CPM200 | 1.5 | 2 | 130 | 40 | 9 | 1"×1" | 850 | 22 | 403×260×325 |
