PC-10 Automatic Water Pressure Controller

The plastic pressure controller has a simple structure and is easy to operate. It can achieve precise pressure control and can independently realize the function of stopping and starting the water pump during control, avoiding unnecessary losses caused by human operating errors.

Send Inquiry

Chat Now

Description

Technical Parameters

Products Description

Customized support	OEM	Brand Name	BINTER or OEM
Place of Origin	Zhejiang, China	Model Number	PC-10
Single gross weight	1.3KG	Application	Automotive Industry, Commercial Buildings, Family Use,Agricultural Irrigation
Pressure	High Pressure	Starting Pressure	Single-stage Pump
Outlet Size	1''*1''	Voltage	110/220V
Frequency	50/60HZ	Protection Degree	IP65

Pressure controller

Product name	Pressure controller
Brand name	DALANG or OEM
Modle No	PC-10
Single gross weight	1.3KG
MOQ	100
Carton Size	52×47×38CM
TECHNICAL DATA	1.Starting Pressure: 1.5bar or 2.2bar 2.Max Rated Current: 10A 3.Max Allowable Pressure: 10bar 4.Rated Voltage: 110V or 220V 5.Frequency: 50/60HZ 6. Max Ambient Temperature:40℃ 7.Max Liquid Temperature:60℃ 8.Protection Degree: IP65
Description	1.Stop and start the pump automatically 2. Stop the pump in the case of water shortage 3.After power cut off, it can restart the pump automatically when the power on 4.Forced start 5.Joint screw: G1"male
Packaging & Delivery	Export specifications Carton/Wooden box

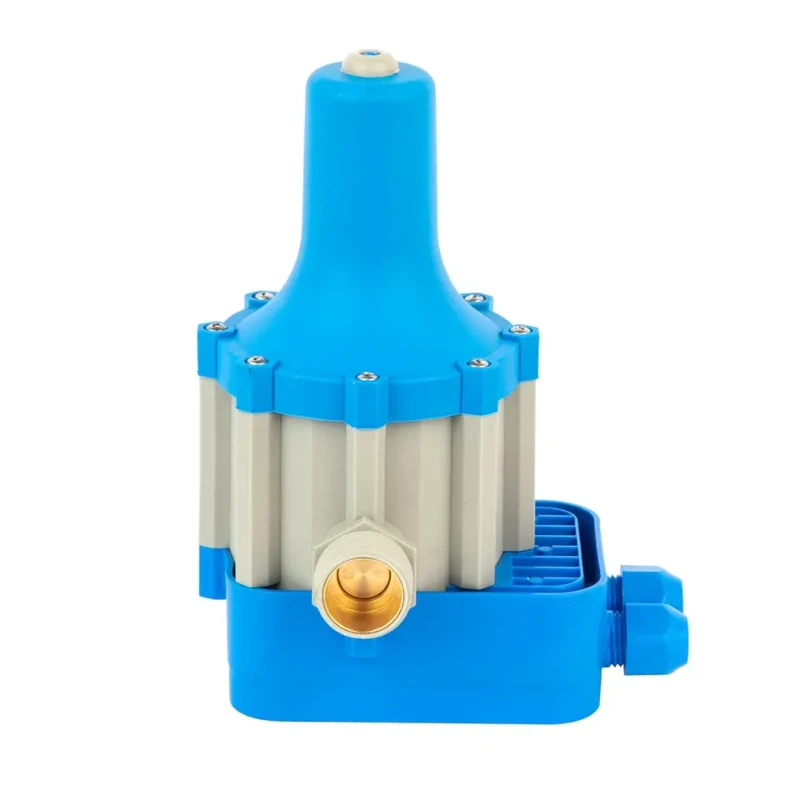

product picture

The plastic pressure controller can automatically adjust the start and stop of the pump according to the water flow, which can effectively save energy.

The plastic pressure controller is made of lightweight plastic material. It is light in weight, simple in structure, and easy to install and operate.
