TECHNICAL DATA
|
Model
|
Power |
Q.Max (m³/h) |
H.Max (m) |
S.Max (m) |
Inlet/Outlet (inch) |
G.W. (kg) |
Packing dimension (mm) |
|
| (Kw) | (HP) | |||||||
| WZB600 | 0.6 | 0.8 | 3 | 40 | 8 | 1"*1" | 12.2 | 280x175x225 |
| WZB800 | 0.8 | 1.1 | 3.5 | 45 | 8 | 1"*1" | 13.6 | 347x202x265 |
APLLICATION

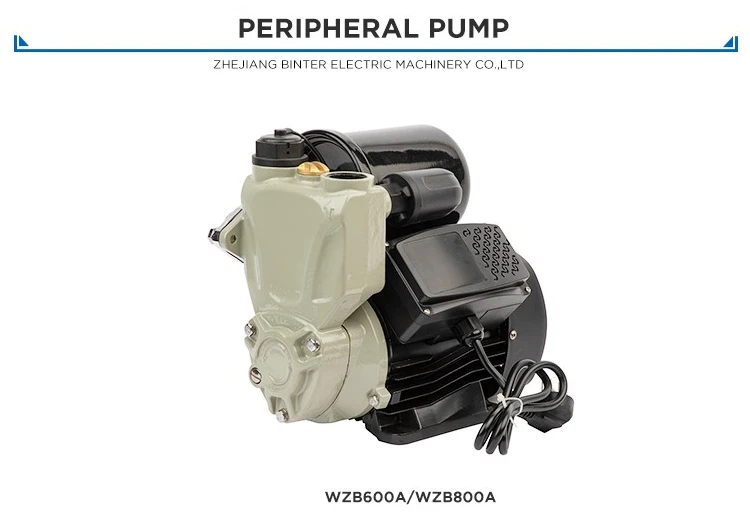

This series of electric pumps is an ideal new type of energy-saving intelligentcontrol household
pump, which is widely used in domestic water intake,well water extraction, tap water pressurization,
garden irrigation, vegetable greenhouse water supply, especially suitable for water heater pipeline
pressurization with insufficient water pressure, to prevent water supply from being cold and hot.
Material and operation conditions:
1.Motor: copper wire or aluminum wire
2.Pump body: Cast iron
3.Motor housing: Aluminum
4.Impeller: Brass
5.Shaft:45#steel/ stainless steel
6.Insulation class: F
7.Protection class: IP44
8.Max medium temperature: +40 °C
9.Max. ambient temperature+40°C
