OPERATING LIMITS
Max.medium temperature+40°C
Max.ambient temperature+40°C
PH level from 4-10
Maximum passage for suspended solids φ50
Voltage fluctuation range:0.9-1.1 times of the rated valueI
mmersion depth from 0.5m-5m
MOTOR INFORMATION
Two-pole induction motor
Single phase/three phase,50/60hz (on demand)
Thermal protector for single phase
Insulation class:BProtection
class:IP X8
MATERIAL
Pump body:Cast iron
Motor housing:Stainless steel
Impeller:Cast iron
Motor wire:Copper
Mechanical seal:Ceramic&Graphite
Shaft:45#steel/stainless steel

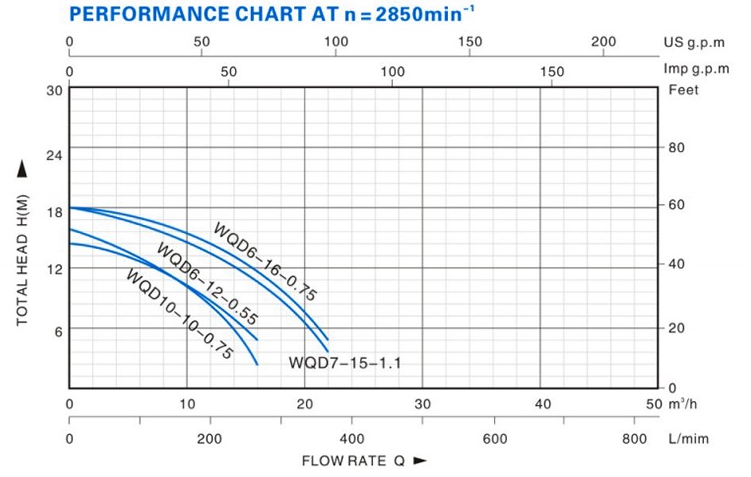

TECHNICAL DATA
|
Model
|
Power |
Q.Max (m³/h) |
H.Max (m) |
Inlet/Outlet (inch) |
N.W. (kg) |
Packing dimension (mm) |
|
| (Kw) | (HP) | ||||||
| WQD6-12-0.55 | 0.55 | 0.75 | 6 | 12 | 1.5 | 19 | 470x250x245 |
| WQD6-16-0.75 |
0.75 |
1 | 6 | 16 | 1.5 | 21 | 470x250x245 |
| WQD10-10-0.75 | 0.75 | 1 | 10 | 10 | 1.5 | 26 | 520x210x275 |
| WQD7-15-1.1 | 1.1 | 1.5 | 23 | 22 | 1.5 | 28 | 540x240x280 |
ZHEJIANG BINTER ELECTRIC MACHINERY CO.,LTD is a professional modern enterprise who engaged in
the research, development,manufacturing, marketing and service of water pumps , mechanical and electrical
products for more than 25 years. Especially we provide various kind of water pumps,like solar water pumps,
surface pumps, submersible pumps, sewage pumps, deep well pumps, etc.
We have passed ISO9001:2016 quality system certification, European CE certification, CB certification, and
won the "Zhejiang high-tech enterprises". Binter has an excellent team of professional knowledge and
experience in international trade, international transportation, engineering technology, who can provide
professional and personalized pre-sales and after-sales service for the customers from all over the world.
We are committed to providing the most competitive products and create greater value for customer.
